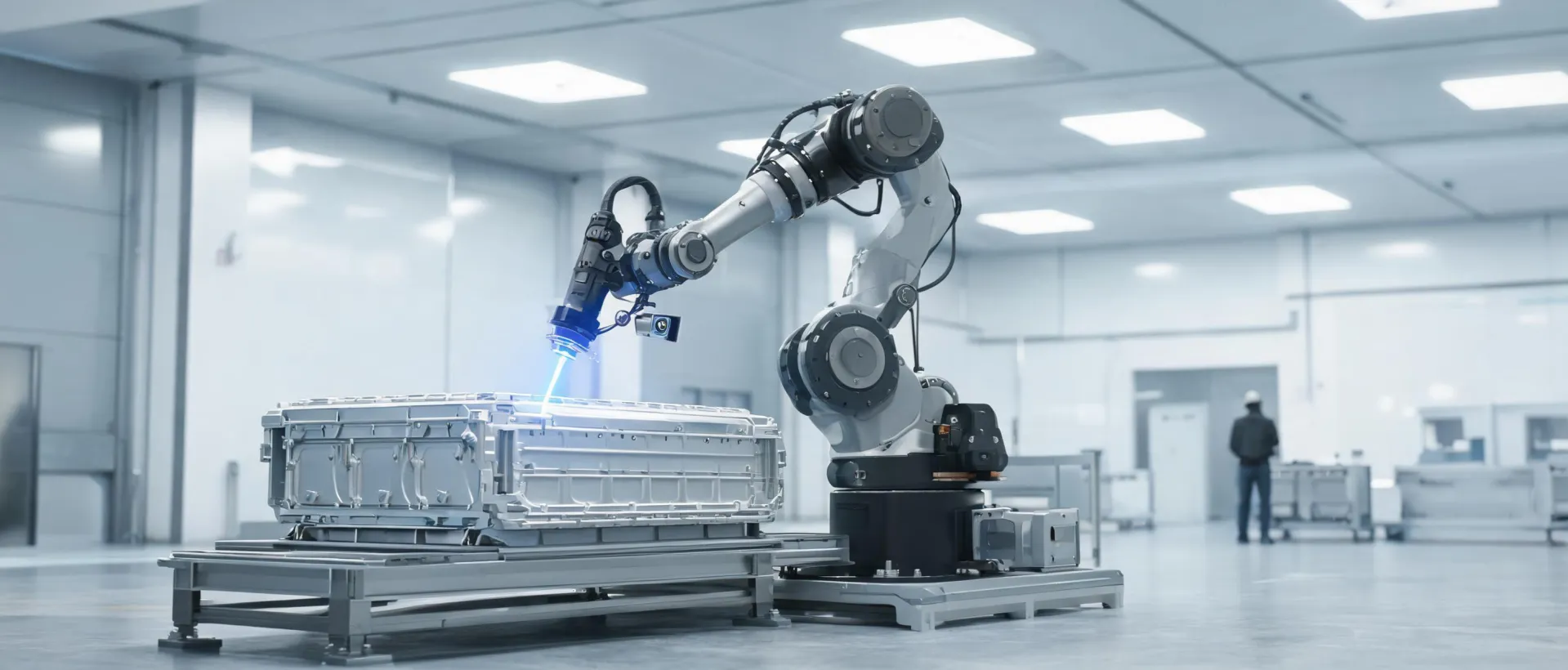

Automated fiber laser welding cell joining an EV battery enclosure

Fiber Laser Welding Systems

IPG Photonics Turns Weld Trials Into Production Windows

Define the joint, measure the process and integrate a repeatable laser cell around the material—not around a generic power rating.

View Welding Systems

Engineering sequence

Four decisions before cell hardware

Each decision creates a measurable gate for the next stage, reducing late changes in optics, tooling and automation.

Joint and material review

Document alloy, coating, thickness stack, edge condition and fit-up tolerance before selecting beam delivery.

Process-window trials

Bracket laser power, travel speed, spot size and shielding strategy with coupon evidence instead of a single showcase weld.

Monitoring strategy

Choose signals that can reveal focus drift, gap excursions or plume changes, then connect them to inspection criteria.

Cell integration

Coordinate robot reach, safety enclosure, extraction, part presentation and data exchange before site acceptance testing.

Configuration logic

Compare requirements by process layer

Input to disclose	Material pair, thickness, coating, joint geometry and allowed heat input
Variables to bracket	Power, velocity, focus position, beam profile and shielding flow
Output evidence	Cross-section, penetration profile, surface condition and defect record

Path basis	Robot, gantry or scanner selected from reach, seam geometry and takt requirement
Fixture input	Datum scheme, clamp access, thermal movement and gap control
Acceptance check	Repeatability study under production loading and realistic part variation

Monitoring	Process emission, back reflection, power delivery and optional seam position signals
Inspection	Visual criteria paired with destructive or nondestructive sampling where applicable
Traceability	Timestamped recipe, part identifier, alarm state and verification disposition

Application bands

One laser platform, different production constraints

Success is defined by the line requirement: sealing, structural integrity, appearance, electrical continuity or dimensional stability.

MobilityCycle

Coordinate seam access and takt with fixture loading.

BatteryHeat

Control energy delivery near sensitive cell components.

AerospaceEvidence

Pair procedure limits with documented inspection steps.

FabricationChangeover

Plan recipes and tooling for mixed part families.

“A credible laser weld trial records the failed settings as carefully as the accepted window. Those boundaries guide controls, alarms and future change management.”

Application engineering principle · process qualification workflow

“Optical access and part presentation are cell-design inputs. Treating them as late mechanical details can erase the stability achieved during coupon trials.”

Integration principle · robotic laser welding workflow

Start with the workpiece

Bring the joint stack, throughput target and acceptance criteria

An application brief is more useful than a request for “a laser welder.” Share the materials, thickness range, seam geometry, current failure mode and desired inspection approach.

Identify fit-up and coating variation
Define required penetration and appearance
Set the sample and inspection plan
Map the handoff from trial to production
